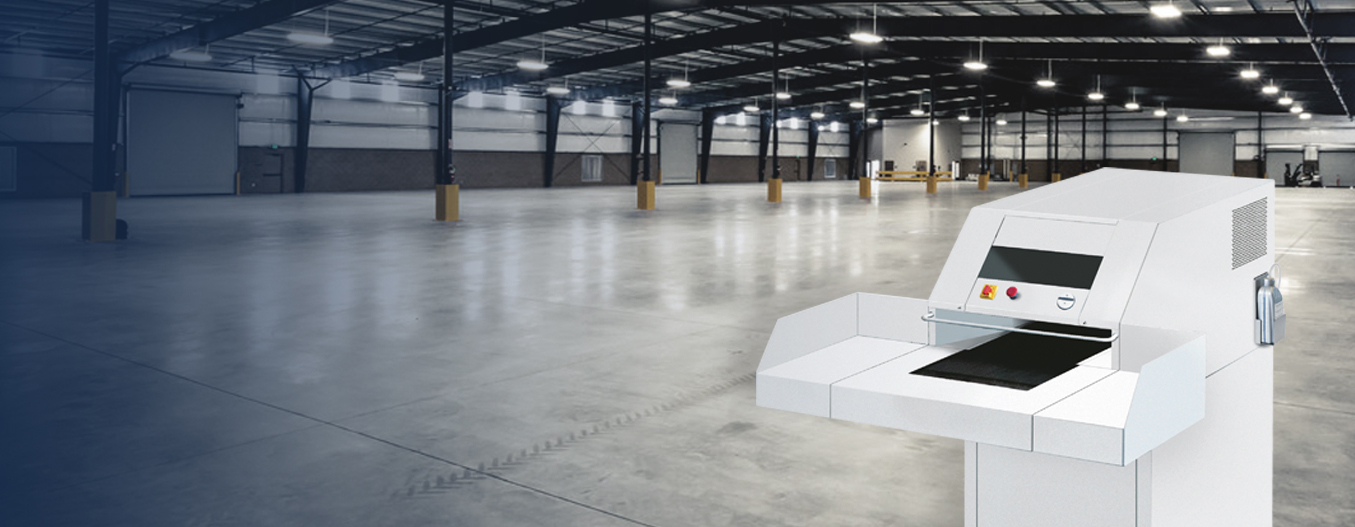

EBA 6340 –
High-Capacity
Conveyor Belt Shredder
Efficient High-Volume Shredding with Conveyor Belt and Intelligent Safety Systems
Designed for intensive, centralised document destruction, the EBA 6340 combines high shred speed, advanced automation, and ease of operation in one powerful system.
Its conveyor belt feed system, robust cutting heads, and automatic oil injection ensure continuous performance for the highest-volume office and industrial environments.
Product Highlights
- Efficient Conveyor Belt System
The integrated conveyor belt and wide feeding table ensure fast and smooth processing,
even with crumpled or large-format paper. - Electronic Capacity Control
Automatically monitors and prevents overfeeding by reversing and refeeding if a paper jam is detected. - Convenient Rear Bag Access
A large, 300-litre shred bin with pull-out suspension on wheels allows for safe and easy
emptying from the rear of the machine. - Smart Operation
The EASY-SWITCH multifunctional control element displays the shredder’s operational
status via intuitive backlit symbols and colour codes. - High-Powered Motor
Powered by either a 4 kW (strip cut) or 3 kW (cross cut) three-phase motor, with thermal
protection and standby mode after 30 minutes of inactivity. - Consistently High Performance
An automatic oil injection system keeps the cutting shafts lubricated during operation for
maximum performance and durability. - Safety First
Includes an emergency cut-off switch, auto stop when the door is opened or bag is full, and castors for mobility and convenience.
Key Features
- EASY-SWITCH
A multifunctional control interface for intuitive operation and status indication. - Pull-Out Bag Suspension
Bag support system on wheels for effortless removal of the full shred bag. - Electronic Oil Injection
Maintains cutting shaft performance by lubricating automatically during operation. - Conveyor Belt System
Delivers smooth feeding and high throughput without jams—even with irregular material. - LED Work Area Illumination
Provides visibility across the feeding and conveyor zone for safe, precise operation.
EBA shredders are manufactured to the highest standards in Germany and certified under DIN EN ISO 9001:2015, 14001:2015 and energy efficiency systems. Durable, secure, and built with first-class components, they feature robust steel cutting shafts (with lifetime guarantee, except on micro/super micro cut models), intelligent safety systems, and spare part availability for a minimum of 15 years after product discontinuation.
Technical Specifications
Specification
Feed Opening
Motor Power
Electrical Connection
Shred Bin Capacity
Dimensions (H x W x D)
Weight
Detail
410 mm
4.0 kW (P-2) / 3.0 kW (P-3 to P-5)
400 V / 50 Hz / 3-phase
300 litres
1,440 × 1,240 × 1,700 mm
357 kg
Secure Your Documents.
Protect Your Reputation.
The EBA 6340 is ideal for organisations needing fast, secure, high-volume document disposal with minimal downtime. Perfect for centralised records disposal or archive purging in large offices, government departments, or logistics hubs.
Security Levels & Capacities
Security Level (DIN 66399)
Shred Size
Sheet Capacity 70 g/m²
80 g/m²
P-2
P-3
P-4
P-5
6 mm strip cut
6 x 50 mm particle cut
4 x 40 mm particle cut
2 x 15 mm particle cut
100–120
85–100
65–75
43–48
87–105
74–87
56–65
37–42
Security Level P-2 (DIN 66399)
Shred Size
Sheet Capacity 70 g/m²
80 g/m²
6 mm strip cut
100–120
87–105
Security Level P-3 (DIN 66399)
Shred Size
Sheet Capacity 70 g/m²
80 g/m²
6 x 50 mm particle cut
85–100
74–87
Security Level P-4 (DIN 66399)
Shred Size
Sheet Capacity 70 g/m²
80 g/m²
4 x 40 mm particle cut
65–75
56–65
Security Level P-5 (DIN 66399)
Shred Size
Sheet Capacity 70 g/m²
80 g/m²
2 x 15 mm particle cut
43–48
37–42
Get full specifications and technical details in the EBA 6340 Product Brochure.
