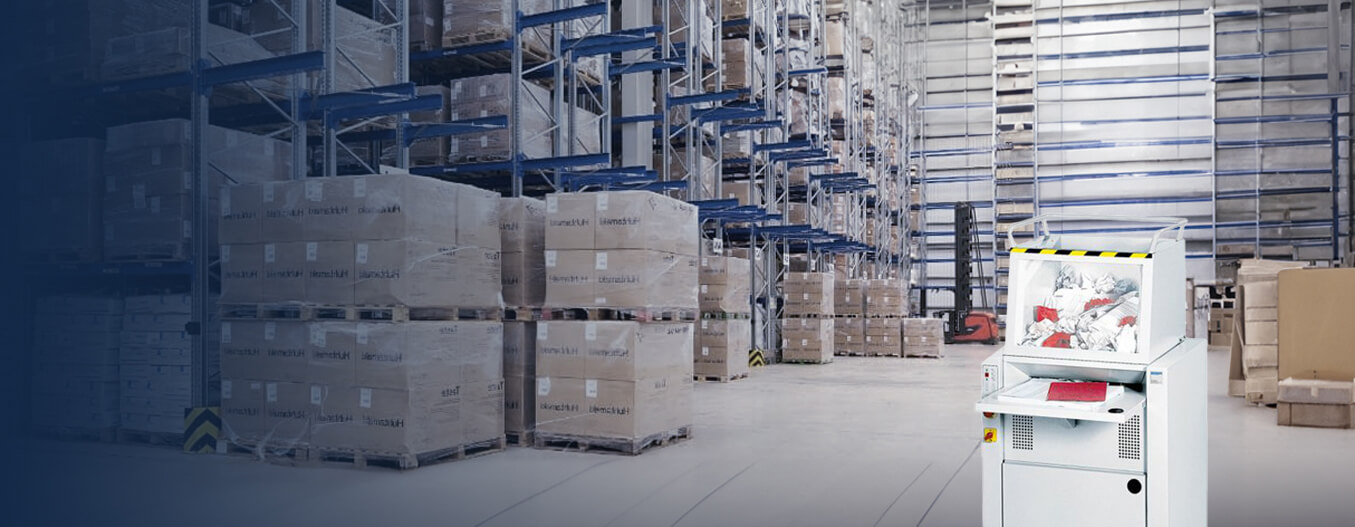

EBA 5346 -
Heavy Duty Shredder
Compact High-Capacity Shredder with Automatic Oiler
The EBA 5346 is a powerful, high-capacity document shredder built to handle intensive shredding demands in busy office environments. Equipped with a tilting hopper for crumpled paper and a second feed opening for flat sheets, this robust machine delivers consistent, secure performance for entire office floors.
Engineered for efficiency, the 5346 features an automatic oil injection system for continuous high shred performance, intelligent controls for user safety, and an exceptionally large 230-litre mobile shred bin.
Built-In Advantages
- Feeding Hopper
Automatically secured and tiltable, allowing easy clearing of paper jams. - Feeding Paddles
Heavy-duty rotating paddles feed even crumpled paper smoothly into the cutting mechanism. - Durable Cutting Shafts
Made from specially hardened solid steel. Resistant to paper clips and backed by a two-year guarantee under fair wear and tear. - Environmental Standards
Manufactured using first-class materials in compliance with ISO 14001 and DIN EN ISO 9001:2015. - Energy Saving
Automatically enters standby mode after 30 minutes of inactivity, reducing power consumption.
Key Features
- Dual Feed System
Tilting hopper with rotating paddles for crumpled paper, plus a second 460 mm feed opening for flat sheets and printouts. - EASY-SWITCH Control
Multifunctional LED switch clearly indicates shredder status with colour-coded back-lit symbols for intuitive use. - Automatic Oil Injection
Lubricates cutting shafts during operation, ensuring long-term durability and consistent performance. - Advanced Safety & Jam Prevention
Automatic reverse and refeed in the event of overloading. Emergency stop and main power switch for added protection. - Mobile Shred Bin
230-litre container mounted on castors for easy disposal. The shredder halts automatically if the bin or door is opened. - Fold-Away Feeding Table
Integrated feeding tray folds down for flat paper insertion, activated by a photo cell for hands-free operation.
Technical Specifications
Feed Width
Shred Bin Volume
Motor Capacity
Power Supply
Shred Bin Volume
Weight
460 mm
230 litres
2.2 kW, three-phase
400 V / 50 Hz / 3~
1700 x 740 x 765 mm (772 mm depth including oil bottle)
253 kg
Reliable German Engineering
The EBA 5346 is crafted in Germany and trusted by institutions worldwide for its
outstanding performance, long life, and secure data destruction capabilities. Backed by a wide service network and guaranteed spare parts availability for 15 years post-discontinuation.
Product Options
Security Level
P-4
P-5
Shred Size
6 x 50 mm particle cut
4 x 40 mm particle cut
2 x 15 mm particle cut
Sheet Capacity 70 g/m²
85–95
65–75
35–45
80 g/m²
74–83
56–65
30–39
Security Level P-3
Shred Size
Sheet Capacity 70 g/m²
80 g/m²
6 x 50 mm particle cut
85–95
74–83
Security Level P-4
Shred Size
Sheet Capacity 70 g/m²
80 g/m²
4 x 40 mm particle cut
65–75
56–65
Security Level P-5
Shred Size
Sheet Capacity 70 g/m² 80
g/m²
2 x 15 mm particle cut
35–45
30–39
